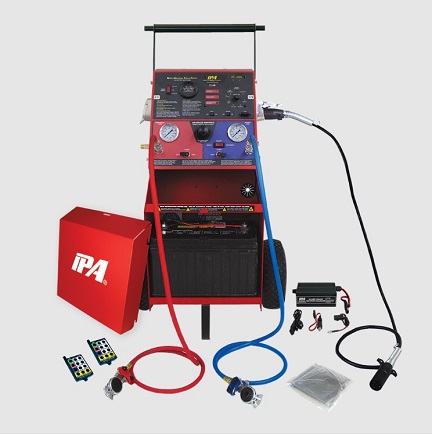

Quickly Troubleshoot Lighting and Air Brake Systems with the Industry’s Leading Mobile Universal Trailer Tester

This intuitive and durable design is ideal for both on and off-site commercial trailer testing and repairs.

FEATURES AND BENEFITS:

ELECTRICAL TESTING (12 & 24 Volt Operation)

- Power lights: Manually, all-on, auto scan, or by remote control
- Audible and visual alerts: cross, open, overloaded and short circuit indication
- Pulsar® mode allows diagnostic repair
- Advanced trailer wiring diagnostics
- Amperage readout and range (0-20 amps)
- Cable testing
- Ground failure detection: differentiates between wire and chassis ground

AIR BRAKE TESTING

- Performs leak-down test on service and emergency lines
- Remote control allows observation of slackers to measure and adjust pushrods
- Real-time, repetitive brake activation to find developing problems and verify leaking servo cans

REMOTE CONTROL

(2) 12-button remote controls test all trailer electric circuitry and air brake actuation, 200 ft. range
Sync multiple remotes to one unit

INCLUDES:

- (2) 12-Button Remote Controls
- 5′ 7 Way Cable
- 8′ Red Hose with Gladhands
- 8′ Blue Hose with Gladhands
- 10 Amp Smart Battery Charger
- Face/Battery Shield
- Rain Cover

ITEM SPECIFICS:

- Connection Type: 7-Way Round Pin
- Power Input: 12/24V DC
- Suggested Battery: Group 31 (or similar battery) or external 12 volt power source
- Source Output: 20A @ 12V DC
- Max Operating Pressure: 120 psi
- Air Input: ¼" npt (120 psi max.)
- Controls: Manual, Remote, Automatic
- Tires: 10" Pneumatic
- Material: Powder-Coated Steel
- Dimensions: 21" L x 15" W x 35" H
- CoO: USA
