The compressed-air-operated MV6830 offers professional-grade brake and clutch bleeding performance. This compact yet powerful unit bleeds up to 2 qt. per minute. Its simple operation allows clean, quick bleeding of brake and clutch lines.
Kit includes an advanced selection of accessories that helps to ensure maximum convenience and performance for greater productivity.
FEATURES:
- Compressed air operation
- Integrated 1.9 qt. capacity fluid collection reservoir
- Variable control thumb throttle
- Swivel air inlet with quick-disconnect
- Quick-disconnect coupler for accessories
- Quiet, muffled exhaust
- Automatic overflow prevention
APPLICATIONS:
- Brake bleeding
- Clutch bleeding
- Vacuum

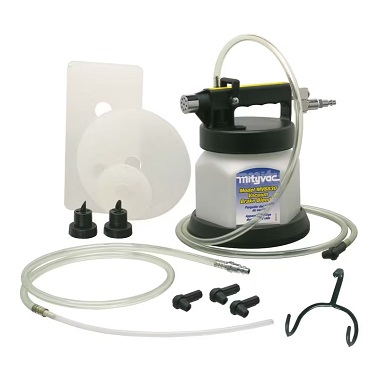

KIT INCLUDES:
- Brake bleeder
- 6 ft. (1.8 m) bleed hose assembly
- 4 ft. (1.2 m) fluid evacuation hose
- Molded base with screws for bench mounting
- Automatic fluid refill kit (MVA6825)
- Hanging hook
- 3 Universal bleed screw adapters
- User manual (English/French/Spanish/German)
PRODUCT SPECIFICATIONS:
- Reservoir capacity: 1.9 qt. (1.8 l)
- Working pressure: 60-150 psi (4.1-10.3 bar)
- Vacuum @ 90 psi (6.2 bar): 26 in. Hg (88 kPa)
- Air consumption @ 90 psi (6.2 bar): 4.3 cfm (2.0 l/s)
- Flow rate @ 60 psi (4.1 bar): 50 oz/min (1460 ml/min)
- Flow rate @ 90 psi (6.2 bar): 70 oz/min (2100 ml/min)
- Flow rate @ 150 psi (10.3 bar): 70 oz/min (2100 ml/min)
- Inlet thread size: ¼ in. NPT
- Packaged weight: 5.0 lbs. (2.3 kg)
- Size (tall x dia.): 9 x 6.5 in. (230 x 150 mm)
