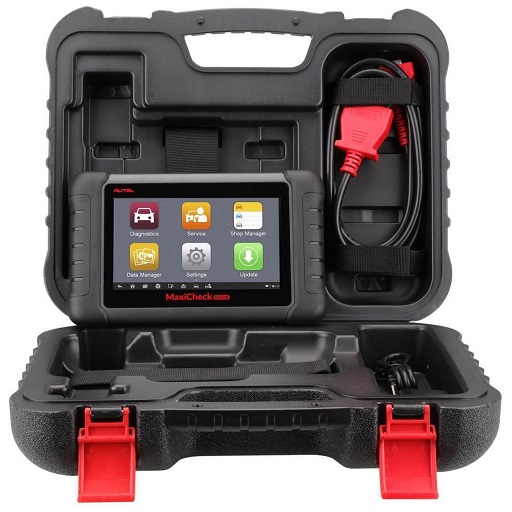

Autel's Newest All Systems/Functions Code Reader is an excellent choice for Shop Technicians, Mobile Mechanics and the Do-It-Yourself'er. Updates are available via Autel's Website, and there is an Annual Renewal Fee of $125 (USD), which is to be paid yearly or the tool will lose it's Functionality.
PRODUCT DESCRIPTION:
- Combination of tool features from the MaxiCHECK Pro and MaxiDIAG MD802
- Tethered OBDII connection
- Complete systems diagnostics
- Internal Battery power
- ANNUAL RENEWAL FEE: $125 (USD)
ALL SYSTEM:
- Read/test/clear trouble codes all 4 systems :
- Powertrain system
- Body system
- Chassis system
- Information and communication
- Communicate with door modules, body controllers, electronic modules
- Support all OBDII protocols and 10 test modes including freeze frame, enhanced mode 6, vehicle information, I/M readiness, on-board monitor and component tests.
- Reset service mileage and service intervals
- Perform OLS/oil service resets
- Set inspection 1 & 2 service intervals
- Open and close EPB (Electronic Brake Calipers) for pad removal and service
- Read and clear EPB/SBC (Sensotronic Brake Control) caliper functionality with bi-directional control
ALL SERVICE:
- Read and clear trouble codes, control and test BMS / EPB / SAS / Oil Light Reset / DPF systems
- Diesel particulate / including forced regeneration
- Reset steering angle sensor (SAS) functionality
- Reset oil service and battery registration and BMS
- Resets service mileage and service intervals
- Basic TPMS service to display, test, activate sensors
- Perform OLS / oil service resets
- Set inspection 1 & 2 service intervals
- Opens and closes EPB (electronic brake calipers) for pad removal and service
- Read and clear EPB/SBC trouble codes
- Diagnose EPB/SBC (Sensotronic Brake Control) caliper functionality with bi-directional control
- Read and erase trouble codes (generic & manufacturer, pending and stored)
- Perform 02 monitor, on-board monitor, 1/M readiness and component testing
- Graph, record and playback freeze frame data
DIAGNOSTIC FEATURES:
- Shop manager
- Extensive vehicle coverage
- Automatic VIN Scan
HARDWARE SPECIFICATIONS:
- OPERATING SYSTEM PROCESSOR MEMORY: Android 4.4.2 KitKat OS
- PROCESSOR: 1.5GHz Cortex-A9 Processor
- MEMORY: 1GB RAM DDR3 / 32GB On-board ROM Memory
- DISPLAY: 7-inch LED capacitive touch screen with 1024 x 600 resolution
- CONNECTIVITY: WiFi (802.11 aA>/Wn)
- Micro SD Card: (Support up to 32GB)
- Mini: USB 2.0
- USB: 2.0
- BATTERY: 3200 mAh 3.7 V lithium-polymer battery/ 4.5 hour continuous battery life
- POWER: Charging via 5 VDC power supply - 5 V (1.5A) Input Voltage
- AUDIO INPUT/OUTPUT: Microphone, 4-Band 3.5 mm stereo/standard headset jack
- POWER CONSUMPTION: 500 mA (LCD on with default brightness, Wi-Fi on)@3.7 V
- OPERATING TEMP: 10 to 60C (14 to 140F)
- STORAGE TEMP: 20 to 70C (-4 to 158F)
- HOUSING: Strong plastic housing with protective rubber boot
SPECIFICATIONS:
- Dimensions: 237.8 mm (9.4") x 148.6 mm (5.9") x 35.5 mm (1.4")
- Net Weight: 788 g (2.42 lb)
