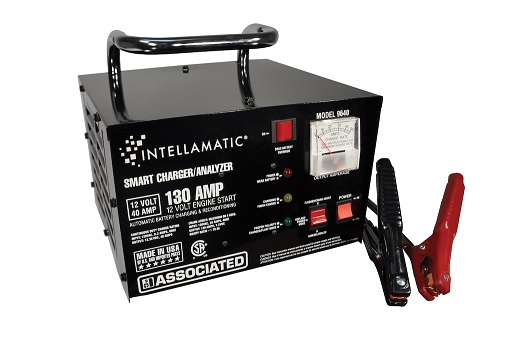

Model 9640
- Intellamatic® 12 Volt Charger/Analyzer/Power Supply
- 45 Amp power supply mode for extended service procedures or re-flashes
- 130 Amp Crank Assist
Associated® Intellamatic® battery chargers/analyzers have the
following features:
- SAFE for Sealed Lead Acid, AGM, and Gel Cell batteries
- Polarity-protected and indicated
- Built-in PATENTED diagnostics to detect weak or defective batteries
- Deep discharge recovery of sulfated batteries
- Tests batteries four times during charge cycle
- Intellamatic® Smart Chargers with the DEAD BATTERY OVERRIDE (DBO) feature for extremely low voltage batteries.
- Indicates 80% and 100% state of charge
- Overcharge protection
- Built-in reflash power supply mode
- ONE-year bumper to bumper warranty
- DOE Compliant and Energy-Efficient
- Made in USA of US and Global Components
Model Number: 9640
DC Output: 12 Volt, 40 Amp, 70 Power Supply Mode
DC Leads: 6.5’ 6.5 AWG
Clamp Rating: 400A
Limited Warranty: One Year
Shipping Dimensions: 17" x 16" x 17"
Weight: 38 LBS
AC Cord / Voltage: 6’ 16-3 / 120VAC, 60 Hz
Battery Types: 12 Volt Flooded, AGM and Gel Cell batteries - including Spiral Cell, Orbital™ or Optima™ batteries
Display: Analog Meter and 3 LED display indicating charge status
