Mack Truck Wiring Schematic

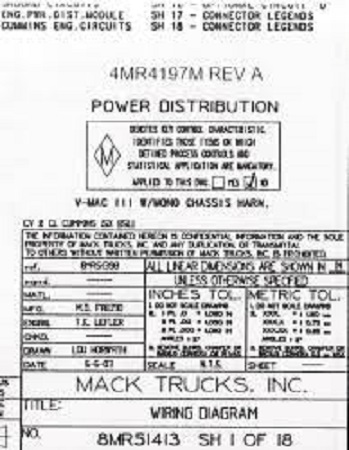

This wiring diagram is useful to anyone who works on or services Mack Trucks.  These pages fold out to 21in x 16in.

Chassis: CV

Contents:

• Sheet 1 - Power Distribution
• Sheet 2 - Lighting Circuits
• Sheet 3 - STD Basic Circuits
• Sheet 4 - V-MAC Circuits
• Sheet 5 - ABS Circuits 'A'
• Sheet 6 - ABS Circuits 'B'
• Sheet 8 - Eng. Pwr. Dist. Module
• Sheet 9 - Cummings Eng. Circuits
• Sheet 10 - Cummins Eng. Ground
• Sheet 11 - Allison HD. Trans.
• Sheet 12 - Auto. Trans. Circuits 'A'
• Sheet 13 - Optional Circuit 'A'
• Sheet 14 - Optional Circuit 'B'
• Sheet 15 - Optional Circuit 'C'
• Sheet 16 - Optional Circuit 'D'
• Sheet 17 - Connector Legends
• Sheet 18 - Connector Legends
