DESCRIPTION & SPECS
Each RECON Certified torque converter is rebuilt to the highest-quality standards in the industry and warranted to be free from manufacturing defects in material and workmanship for 4-years, 100,000-miles from the date of purchase. Our unmatched 5-step remanufacturing process combines the precision of computers with the experience of engineers to ensure consistently high quality is achieved.

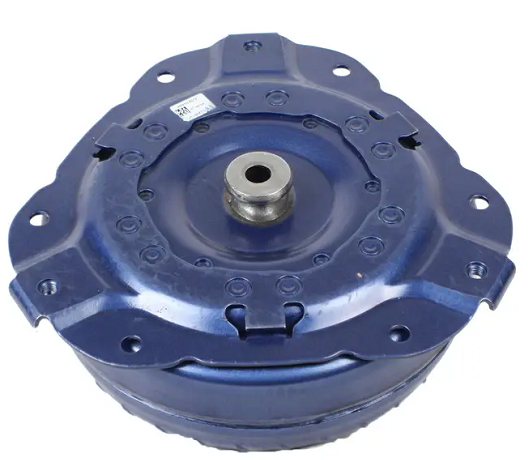

Torque Converter

• Remanufactured
• 11.1" Body Diameter, Stepped Slotted Hub Type, 3 Mounts, Raised Pad with Captive Lugs Mount Type
• 11.5" Bolt Circle, 1.702" Pilot Outside Diameter, 0.64" Pilot Length
• No Ring Gear
• 2426 8442, 2427 9756 Stamped Codes
• 36 Turbine Splines

NAME SPECS
Billet Cover No
Body Diameter Inches 11.1
Bolt Circle Inches 11.5
Codes Dye/Ink Stamped 2426 8442, 2427 9756
Hub Type Stepped Slotted
Mount Type Raised Pad with Captive Lugs
Number of Mounts 3
Package UOM Each
Pilot Length Inches 0.64
Pilot OD Major Inches 1.702
Quantity Per UOM 1
Remanufactured Yes
Turbine Internal Spline Count 36
Weight 40.98
With Ring Gear No

TRANSMISSIONS
NAME YEARS
6L80 2014 - 2021
6L90 2014 - 2015

VEHICLE FITMENT
YEARS VEHICLE DRIVE TYPES
2014 - 2015 Cadillac Escalade ESV AWD, RWD, 4WD
2014 - 2015 Cadillac Escalade AWD, RWD, 4WD
2014 - 2015 Cadillac CTS AWD, RWD
2014 - 2015 Chevrolet Tahoe RWD, 4WD
2014 - 2014 Chevrolet Suburban 1500 RWD, 4WD
2015 - 2015 Chevrolet Suburban RWD, 4WD
2014 - 2015 Chevrolet SS RWD
2014 - 2015 Chevrolet Silverado 3500 HD RWD, 4WD
2014 - 2015 Chevrolet Silverado 2500 HD RWD, 4WD
2014 - 2021 Chevrolet Silverado 1500 RWD, 4WD
2014 - 2015 Chevrolet Express 4500 4 X 2
2014 - 2015 Chevrolet Express 3500 RWD
2014 - 2015 Chevrolet Express 2500 RWD
2014 - 2014 Chevrolet Corvette RWD
2014 - 2015 Chevrolet Caprice RWD
2014 - 2015 Chevrolet Camaro RWD
2014 - 2014 GMC Yukon XL 1500 AWD, RWD, 4WD
2015 - 2015 GMC Yukon XL RWD, 4WD
2014 - 2015 GMC Yukon AWD, RWD, 4WD
2014 - 2015 GMC Sierra 3500 HD RWD, 4WD
2014 - 2015 GMC Sierra 2500 HD RWD, 4WD
2014 - 2021 GMC Sierra 1500 RWD, 4WD
2014 - 2015 GMC Savana 4500 4 X 2
2014 - 2015 GMC Savana 3500 RWD
2014 - 2015 GMC Savana 2500 RWD
