$190 Core Charge & Return Shipping Included in Price: Core charge refunded when your old torque converter is received. A return shipping call tag will be included in the box.

Shipping: 1 - 3 Day Delivery in USA (Please Select "AMERICA-ECONOMY" at Checkout)

DESCRIPTION
Each RECON Certified torque converter is rebuilt to the highest-quality standards in the industry and warranted to be free from manufacturing defects in material and workmanship for 4-years, 100,000-miles from the date of purchase. Our unmatched 5-step remanufacturing process combines the precision of computers with the experience of engineers to ensure consistently high quality is achieved.

Torque Converter; Remanufactured, 12.5" Body Diameter, Slotted Stepped Hub Type, 3 Mounts, Stepped Pads Mount Type, 11" Bolt Circle, 1.701" Pilot Outside Diameter, No Ring Gear, JMBX, 24236469, 24239789, 24245964, 24243221 Sticker Codes, Low Stall, 36 Turbine Splines, Lock-Up

SPECS
Body Diameter Inches 12.5
Body Diameter mm 317.5
Hub Type Slotted Stepped
Hub Internal Bushing No
Hub Seal Groove No

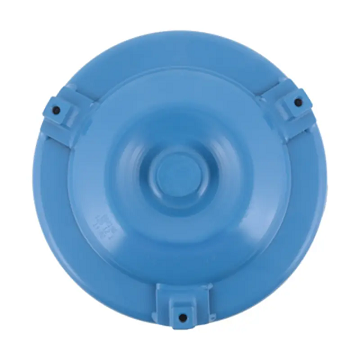

Number of Mounts 3
Mount Type Stepped Pads
Mount Threads 10mm X 15
Bolt Circle Inches 11
Pilot OD Major Inches 1.701
Pilot Type Straight
With Ring Gear No
Codes Sticker JMBX, 24236469, 24239789, 24245964, 24243221
Cooling Shroud No
Billet Cover No
Pump Stall Low

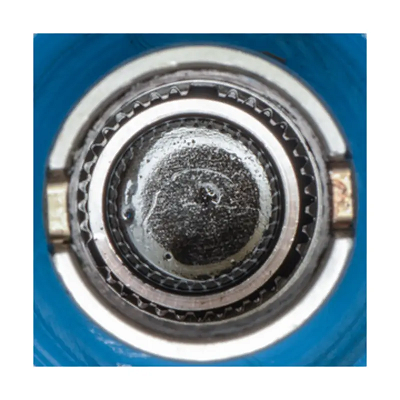

Turbine Internal Spline Count 36
Lock-Up Unit Yes

TRANSMISSIONS
NAME YEARS
6L80 2007 - 2021
6L90 2007 - 2021
6L80-E HD 2011 - 2012
6L80-EHD 2011 - 2011
6L80-E 2016 - 2016

VEHICLE FITMENT
YEARS VEHICLE DRIVE TYPES
2007 - 2013 Cadillac Escalade EXT AWD
2007 - 2013 Cadillac Escalade ESV AWD, RWD
2007 - 2013 Cadillac Escalade AWD, RWD
2009 - 2020 Chevrolet Tahoe RWD, 4WD
2008 - 2009 Chevrolet Suburban 2500 RWD, 4WD
2009 - 2014 Chevrolet Suburban 1500 RWD, 4WD
2015 - 2020 Chevrolet Suburban RWD, 4WD
2014 - 2017 Chevrolet SS RWD
2007 - 2009 Chevrolet Silverado 3500 HD RWD, 4WD
2007 - 2009 Chevrolet Silverado 2500 HD RWD, 4WD
2009 - 2021 Chevrolet Silverado 1500 RWD, 4WD
2016 - 2016 Chevrolet LCF 4500 4 X 2
2010 - 2016 Chevrolet Express 4500 4 X 2
2011 - 2021 Chevrolet Express 3500 RWD
2018 - 2021 Chevrolet Express 2500 RWD
2008 - 2014 Chevrolet Corvette RWD
2011 - 2017 Chevrolet Caprice RWD
2010 - 2015 Chevrolet Camaro RWD
2009 - 2013 Chevrolet Avalanche RWD, 4WD
2008 - 2013 GMC Yukon XL 2500 RWD, 4WD
2007 - 2014 GMC Yukon XL 1500 AWD, RWD, 4WD
2015 - 2020 GMC Yukon XL RWD, 4WD
2007 - 2020 GMC Yukon AWD, RWD, 4WD
2009 - 2016 GMC Sierra 3500 HD RWD, 4WD
2009 - 2016 GMC Sierra 2500 HD RWD, 4WD
2007 - 2021 GMC Sierra 1500 AWD, RWD, 4WD
2010 - 2016 GMC Savana 4500 4 X 2
2011 - 2020 GMC Savana 3500 RWD
2011 - 2020 GMC Savana 2500 RWD
2008 - 2009 Hummer H2 4WD
2008 - 2009 Pontiac G8 RWD
