DESCRIPTION & SPECS
Each RECON Certified torque converter is rebuilt to the highest-quality standards in the industry and warranted to be free from manufacturing defects in material and workmanship for 4-years, 100,000-miles from the date of purchase. Our unmatched 5-step remanufacturing process combines the precision of computers with the experience of engineers to ensure consistently high quality is achieved.

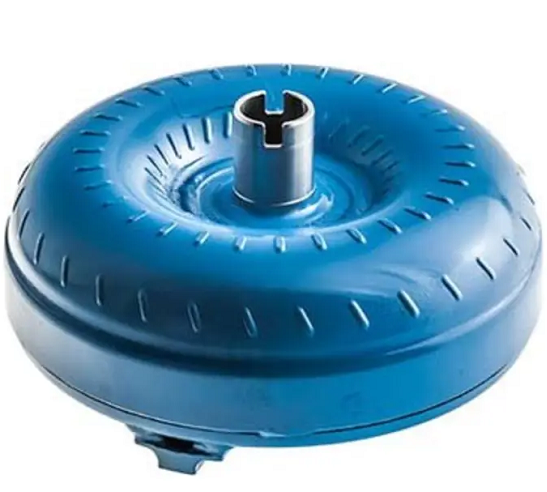

Torque Converter; Remanufactured

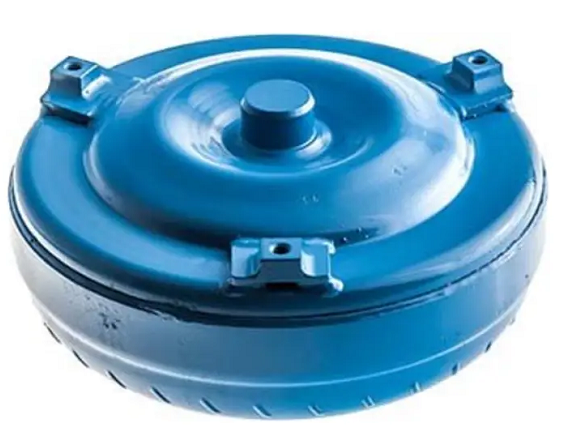

• 12.5" Body Diameter, Stepped Slotted Flanged Hub Type, 3 Mounts, Stepped Pads Mount Type
• 11" Bolt Circle, 1.702" Pilot Outside Diameter, No Ring Gear
• JMBX, 24242396, 24242397, 24238202, 24245962, 24243219 Sticker Codes
• Low Stall, 36 Turbine Splines, Lock-Up

NAME SPECS
Balance Weight Position IMPELOD
Billet Cover No
Body Diameter Inches 12.5
Body Diameter mm 317.5
Bolt Circle Inches 11
Bolt Radius Inches 5.5
Codes Sticker JMBX, 24242396, 24242397, 24238202, 24245962, 24243219
Cooling Shroud No
Dimple Pitch Low 5
Hub Internal Bushing No
Hub Length Inches 2.3
Hub OD Major Inches 1.833
Hub OD Minor Inches 1.829
Hub Seal Groove No
Hub Type Stepped Slotted Flanged
Lock-Up Unit Yes
Mount Threads 10mm X 15
Mount Type Stepped Pads
Number of Mounts 3
OE End Play 0.04
OE Height Inches 6.167
Package UOM Each
Pilot OD Major Inches 1.702
Pilot Type Straight
Pump Stall Low
Quantity Per UOM 1
Remanufactured Yes
Stator Codes 24225675
Stator Rotation Clockwise
Stator Spline Count 36
Stator Spline Depth Inches 2.825
Stator Vane Count 18
Turbine Internal Spline Count 36
Turbine Spline Depth Inches 4.37
Turbine to Pump Clearance 0.08
Weight 43.05
Weight UOM Pounds
With Ring Gear No

TRANSMISSIONS
NAME YEARS
1000 2016 - 2016
6L80 2007 - 2021
6L45 2014 - 2017
6L90 2007 - 2021
6L80-E HD 2011 - 2012
6L80-EHD 2011 - 2011

VEHICLE FITMENT
YEARS VEHICLE DRIVE TYPES
2007 - 2013 Cadillac Escalade EXT AWD
2007 - 2013 Cadillac Escalade ESV AWD, RWD
2007 - 2013 Cadillac Escalade AWD, RWD
2015 - 2016 Chevrolet Tahoe RWD, 4WD
2016 - 2018 Chevrolet Suburban 3500 HD 4WD
2008 - 2013 Chevrolet Suburban 2500 RWD, 4WD
2013 - 2013 Chevrolet Suburban 1500 RWD, 4WD
2016 - 2016 Chevrolet Suburban RWD, 4WD
2014 - 2016 Chevrolet SS RWD
2007 - 2018 Chevrolet Silverado 3500 HD RWD, 4WD
2007 - 2018 Chevrolet Silverado 2500 HD RWD, 4WD
2009 - 2021 Chevrolet Silverado 1500 RWD, 4WD
2016 - 2018 Chevrolet LCF 3500 4 X 2
2010 - 2020 Chevrolet Express 4500 4 X 2
2010 - 2016 Chevrolet Express 3500 RWD
2010 - 2016 Chevrolet Express 2500 RWD
2008 - 2014 Chevrolet Corvette RWD
2014 - 2017 Chevrolet Caprice RWD
2012 - 2013 Chevrolet Camaro RWD
2011 - 2012 Chevrolet Avalanche RWD, 4WD
2008 - 2013 GMC Yukon XL 2500 RWD, 4WD
2007 - 2014 GMC Yukon XL 1500 AWD, RWD, 4WD
2007 - 2015 GMC Yukon AWD, RWD, 4WD
2009 - 2018 GMC Sierra 3500 HD RWD, 4WD
2009 - 2018 GMC Sierra 2500 HD RWD, 4WD
2007 - 2017 GMC Sierra 1500 AWD, RWD, 4WD
2010 - 2016 GMC Savana 4500 4 X 2
2011 - 2021 GMC Savana 3500 RWD
2011 - 2021 GMC Savana 2500 RWD
2008 - 2009 Hummer H2 4WD
2008 - 2009 Pontiac G8 RWD
