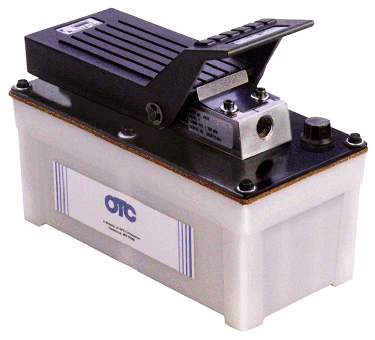

With shop air as the energy source, this pump has the power and oil capacity (80 cu. In. usable oil) to drive even the large all-around power sources for dozens of applications including body, frame, and alignment.

Can be used with a variety of rams, presses, and hydraulic pullers operating at up to 10,000 PSI. An internal relief valve protects the hydraulic components regardless of hydraulic pressure. In addition, a two-stage release mechanism gives fast or metered ram return while reducing hydraulic shock.

Features:

• Develops 10,000 PSI at 100-PSI air pressure.
• 3/8 NPTF oil port.
• 98 cu. In. usable oil capacity in plastic reservoir.
• Wt., 15 lbs., 3 oz.
