iCarsoft FD-II for Ford (USA/EU/AUS) & Holden Car/Truck (including F150-F550, F650 & F750 Trucks)

Features:

•  FD II can do it all-reads and clears trouble codes on all the systems such as engine, transmission, ABS and airbag etc.
•  Read Data Stream
•  Full ECU Diagnosis
•  Applies to all models of Ford / Holden equipped with OBDII-16 Diagnostic Link Conector
•  Easy To Use With Metal Dome Keys
•  Oil Light/Service Reset: Support service lamp reset, Brake pad reset function, Steering angle sensor calibration etc.
•  EPB: Opens and closes the brake pads, Reads and clears EPB/SBC trouble codes,
•  Turns off the ECU and brake warning light, Diagnoses EPB/SBC caliper functionality, Resets brake pad thickness, etc.
•  ABS/AIRBAG: Diagnoses ABS/ SRS system codes,
   Reads/clears codes of ABS/SRS system and turns off ABS/SRS warning light,
   Performs bi-directional tests such as cycling the ABS solenoids, Retrieves ABS/SRS ECU information etc.
•  NOTE: NOT ALL FUNCTIONS ARE AVAILABLE FOR EVERY VEHICLE.  AVAILABLE FUNCTIONS
   ARE SPECIFIC TO VEHICLE'S MODEL & YEAR.  PLEASE DOWNLOAD THE FUNCTION LIST FOR
   YOUR VEHICLE TO DETERMINE AVAILABLE FUNCTIONS.
•  Vehicle System Coverage Function Download Lists: EU FORD, USA FORD, Australia Ford, Holden
•  Works on most of 2001 and later OBDII compliant PETROL European vehicles
•  Works on most of 2004 and later OBDII compliant DIESEL European vehicles
•  Works on most of 1996 and later OBDII compliant US and Asian vehicles

Twelve Super Advantages:

•  Read & Clear DTCs
•  Read Data Stream
•  Full ECU Diagnosis
•  Diagnose Single-brand Models Equipped With OBDII-16 DLC
•  Easy To Use With Metal Dome Keys
•  4.0” TFT LCD With 480 * 320 Pixels
•  USB 2.0 High Speed Upgrade
•  Upgrade Via TF Card
•  Support Multi-language
    And for more, refer to User's Manual.

OBDII Functions:

1. Read Codes
2. Erase Codes
3. I/M Readiness -- I/M Readiness indicates whether or not the various emissions-related systems on the vehicle are operating properly and are ready for Inspection and Maintenance testing.
4. Data Stream
5. Freeze Frame -- When an emission-related fault occurs, certain vehicle conditions are recorded by the on-board computer. This information is referred to as freeze frame data. Freeze Data is a snapshot of the operating conditions at the time of an emission-related fault.
6. O2 Sensor Test -- This option allows retrieval and viewing of O2 sensor test results for most recently performed tests from the vehicle’s on-board computer.
7. On-Board Monitoring -- This function can be utilized to read the results of on-board diagnostic monitoring tests for specific components/systems.
8. Evap System Test -- The EVAP test function lets you initiate a leak test for the vehicle’s EVAP system. Before using the system test function, refer to the vehicle’s service repair manual to determine the procedures necessary to stop the test.
9. Vehicle Information -- The option displays the vehicle identification number (VIN), the calibration verification number (CVN), and other information of the test vehicle.

Specifications:

•  Display: 4.0” TFT LCD , with 480 * 320 Pixels
•  Operation Temperature: 0 ℃ -- 50 ℃
•  Storage Temperature: -20 ℃ -- 70 ℃
•  Power: 9V -- 18V
•  Operating current:150mA@12V(Typical)
•  Power consumption:1.8W(Typical)
•  Dimension:205mm*110mm*31mm(LxWxH)
•  Weight:350g
•  1 Year Warranty

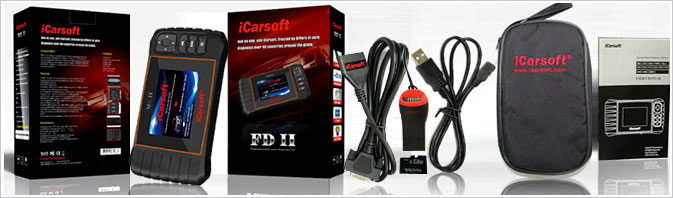

Contents:

•  Main Unit
•  Hardcopy User’s Manual
•  Main cable
•  USB cable
•  TF Card
•  Nylon carry case
•  TF card reader

Software Updates:

If you don't know how to do update,  please check this video first: updating video for option C  When choosing option C, please make sure to follow the instructions step by step.

• Step 1: Please click the link below to download the iCarsoft updating tool.
iCarsoft Updating Tool for Second Generation Product.

• Step 2: Please download below updating instruction and follow it step by step.
Detailed instructions for Updating

User Manual Downloading:
Please click “User Manual Downloading“ link to download the user manual you need.

FREE GIFT with Purchase! 1 Week Activation Card to eAutoRepair Do-It-Yourself Automotive Repair Information 1 Week Access - One Vehicle

Automotive code scanners are quickly becoming the latest tool in the do-it-yourselfers tool box. These handheld devices make it convenient for anyone to respond to check engine warnings lights and many other symptoms or problems detected by the vehicles computer. Trouble codes and code definitions associated with the problems are easily retrieved.

But once diagnosed, how do you FIX the problem? eAutoRepair provides the perfect online solution with instant up-to-date information on vehicles from 1983 to 2010. The data is made available by Mitchell1, the leading information provider to the automotive aftermarket for 85 years. This subscription based resource includes Diagnostics, Troubleshooting, Repair, Maintenance, Technical Service Bulletins and Factory Recalls.
